HIS 7850 IceQ Turbo features iPower for more voltage, Faster Turbo Clock, IceQ is Cooler & Quieter, iTurbo, Long Lasting Design
iPower: More Voltage, More Overclocking!
Increased Power supply input for more voltage for overclocking! The extra PWM phase for core voltage provides extra power stability, lower temperature for power components!
| HIS 7850 IceQ Turbo | AMD 7850 Ref Board | |
| Power Input | 6+6 | 6 |
| PWM Phase | 5+1+1+1=8 | 4+1+1+1=7 |
| Copper Layer | 2 Oz | 1 Oz |
| Mosfet | Dr. Mos | Original Mos |
Turbo: HIS OC Graphics Card
Turbo cards are faster than regular cards! The card is bios-overclocked out of the box with 1000 MHz/ 4800 MHz core clock and memory clock
| HIS 7850 IceQ Turbo | AMD 7850 Ref Board | |
| Core Clock | 1000 MHz | 860 MHz |
| Memory Clock | 4800 MHz | 4800 MHz |
IceQ– Cooler, Quieter
Crossfire Advantage
IceQ ensures effective cooling when there is another card in front blocking the fan inlet, such as in CrossFire setup.
By expelling the hot air, IceQ removes all the heat generated by the GPU out of the computer chassis, prevents the hot air from accumulating inside and enhancing the overall stability. The more crowded the chassis, the greater will be the impact.
The demonstration shows that the IceQ does outperform the 3rd party cooler in closed environment. Cool air is drawn from both sides of the fan and hot air is forced out of the computer case. This ensures effective cooling when there is another card in front blocking the fan inlet, such as in CrossFire setup.
Black Hole Impeller
Black hole impeller ensures large amount of cool air is ready. It draws cool air from both sides of the fan even there is another card blocking the fan inlet on the front side of fan.
Cooler
The card is cooler than reference cooler.
Quieter
IceQ is one of the quietest coolers. The card is below 28dB when watching movies, surfing Facebook, working. The card remains quiet whether you are gaming, online socializing or entertaining.
Fan Design
The super large 57mm single blower fan draws massive amount of cool air to cool the GPU directly.
The fan is extremely durable with a life span of up to 50,000 hours!
2x 6mm plus 2x 8mm wide heatpipes optimize cooling performance by removing heat from the core area.
The extra large 115 x 94mm copper heatbase provides a 140 x 125mm large heat dissipation area.
The card also features fan control and fan monitoring, you are able to read fan speed & Asic temperature from CCC or software.
Long Lasting Design: Safer, Last Longer!
Enhances stability in critical gaming situations!
HIS cards are engineered with the highest standard of safety, preventing them any potential damages. Solid State Choke stabilizes the card and Full Solid State Capacitors ensures the best power quality and enhances the card’s stability in critical gaming situations!
Special Metal Rib
PCB might easily warped due to prolonged hanging on motherboard & casing, potentially causing cracks on BGA solder joints and resulting in malfunctioning of the card. The HIS special metal rib provides extra strength to the PCBs to avoid warpage, making the cards extra stable and durable. You can count on HIS cards to game hard for 24/7/365 for years!
OC Equipment
The card is equipped with improved power design which is great for OC! HIS cards utilize Dynamic Phase Control PWM IC to save power for better use. Along with improved power design, digital power design, 2 ounces Copper Layer, HIS cards make the best out of power, carrying better OC capability and pushing clock speeds to the full potential!
Built for Crossfire
CrossFireX Ready!
The card's is armed with Crossfire Connector, ready for CrossFire & strengthened performance!
New Technology, New Experiences
GCN
With AMD GCN technology, the card optimizes DirectX® 11.1 gaming performance automatically up to 2.5 times faster! It also offers up to 4.5x compute performance and up to 95% lower GPU Idle Power Consumption!
Apps Faster & Smoother!
The card enables a “quality graphics” experience on everyday applications, giving huge performance boosts on image processing, file compression, media converter apps, and a lot more!
• Adobe Photoshop CS6
• Corel Winzip 16.5
• Musemage
• Handbrake
• MotionDSP Vreveal
• GIMP
• Cyberlink Power Director
• ArcSoft Media Converter
PCI-e 3.0 Support
Armed with the latest PCI-e 3.0 bus design maximizes performance by delivering double bandwidth per lane of PCI-e 2.x. Paired the card with the latest platforms and get the ultimate performance!
More Graphics, Less Power!
The new architecture of the card gets more usable processing power for your money, enabling better frame rates in the latest games at high resolutions. In addition, with AMD ZeroCore Power & AMD PowerTune technologies, you can optimize the balance between performance and power consumption of your system by adjusting the engine clock during runtime of the card. Manage the power and keep your wallet loaded!
See More, Enjoy More!
The card supports 30” LCD monitor and any large size TV up to 80" feature with 16:9 ratio in amazing 4096 by 2160 resolution. Up-scaling your computer into a multimedia center with the biggest display!
Enjoy HD Beauty
With Full HD 1080p support, the card delivers high quality 1920X1080 graphics, enabling seamless full-screen video playback. See HD, hear HD and feel HD - Enjoy the beautiful graphics now with the card!
Enjoy Copy Protected Movies
The card is HDCP complaint, enabling users to play copy-protected content, such as commercial DVD movies.
Enjoy True to Life Graphics
Quad HD videos have resolution four times that of current HD videos, meaning images too clear that may deceive your eyes! With the card, you are set for getting the movie theater experience to your home. You may be able to watch a video shooting the Eiffel tower and zoom it in to see your friend’s face clearly from the top! Get your eyes impressed and enjoy mind-blowing graphics with extreme clarity, depth and texture!
See more, Win More!
The card is capable to turn your computer into a super gaming machine. Enjoy the latest 3D games with stunning graphics and effects that your enemies cannot match! Get an immersive experience with AMD Eyefinity “2.0”!
Expand your game across up to 4 displays while your opponents have one monitor. Along with all-new support for stereo 3D, universal bezel compensation and brand new display configurations, take the unfair advantage over your opponent and win more with the surround sight
View More, Work Better
Having one dedicated screen just for twitter or Facebook and a second for outlook is not a dream anymore. The card features 2 Mini-display Ports for enhanced workspace flexibility. You can easily connect to two displays, including the 27” Apple LED Cinema Displays with the two Mini DisplayPorts. The dual-link DVI port allows you connect to a 30” DVI display up to 2560x1600. Resolution can even reach 4096x2160 with HDMI® , good for TV up to 80"!
Hear Better in Video Conference
Most GPUs today support only one audio stream at a time. The card, however, has Discrete Digital Multi-Point Audio that can simultaneously output multiple, independent audio streams. Audio seamlessly follows the video, providing affordable multi-display, multi-audio conferencing for consumers!
The card is an ideal solution for all those who rely on having several applications visible simultaneously for extra productivity. Multi-tasking just got a lot simpler! Make your computer a multi-display workstation!
Disclaimer:
The figures of current outputs are estimated from PWM phase specifications. The maximum current output can be different with a different setting.
The figures of 3Dmark 11 above are based on test results in HIS lab with the following platform:
• Motherboard Chipset: AMD 890FX
• System Memory Size: DDR3 4G
• CPU Type And Speed: Athlon II X4 635 2.9GHz AM3
• Operation System: Windows 7 64bits
• Background Resolution: 1024x768x32bit
• Background Refresh Rate: 75Hz
Results may vary based upon system setting.
HIS Products Advantage
- HIS delivers Faster, Cooler, Quieter plus the best quality product!
- Professional customer service and technical support
What's in the box
- HIS Graphics Card
- CrossFireXTM Bridge
- DVI-VGA Adapter
- Install CD with Multilingual User Guide
- Quick Installation Guide
- HIS Power Up Label
 Model Name |
HIS 7850 IceQ Turbo 2GB GDDR5 PCI-E DVI/HDMI/2xMini DP |
| Chipset |
Radeon HD 7850 PCIe Series |
| ASIC |
RadeonTM HD 7850 GPU |
| Manu. Process (Micron) |
28nm |
| Memory Size (MB) |
2048 |
| Memory Type |
GDDR5 |
| Engine CLK (MHz) |
1000MHz |
| Memory CLK (Gbps) |
4.8Gbps |
| Memory Interface (bit) |
256bit |
| Power Supply Requirement |
500 Watt or greater power |
| Max. Resolution |
4096x2160 per display (DisplayPort 1.2) 2560x1600 per display (Dual-link DVI) 2048x1536 per display (VGA) |
| Bus Interface |
PCI Express 3.0 x16 |
| Mini Display Port |
Yes |
| HDMI |
Yes |
| DVI |
Dual-link DVI-I |
| VGA |
No |
HD 7850 System Requirement
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard
- 500W (or greater) power supply with two 75W 6-pin PCI Express® power connectors recommended
- Certified power supplies are recommended. Refer to http://support.amd.com/us/certified/power-supplies/Pages/listing.aspx for a list of Certified products
- Minimum 1GB of system memory
- Installation software requires CD-ROM drive
- DVD playback requires DVD drive
- Blu-ray™ playback requires Blu-ray drive
- The operation of AMD CrossFire™ technology in dual mode requires a second AMD Radeon™ HD 7800 Series graphics card and an AMD CrossFire™ Ready motherboard
November 19th, 2012 at 07:50 am By Klaus
When i recieved this GPU and when i opened the box it was wow this is a pretty big graphics card and looked really cool and i like the black color to go along with the inside of my pc case which is also black, and it was an easy install to do. I think HIS has made a awesome graphics card and has been well constructed for years of performance and for half the cost of a nvidia graphics card in the same range and will perform as good or even better.
Pros
Every game i tested like Dishonored, Metal of Honor Warefare, Borderland 2 and Mass effect 3 etc all at max settings and the temperature never exceeded over 50c on all the games and the fan speed never exceeded over 35 - 37% and was very quiet during all the gameplay being done on these games and was a treat to play these games with so little noise from the fan.
The framerates on all these games were around 60 fps except Metal of Honor Warefare which was from 47- 50 fps which is still very good for that game.
Cons
None as this HIS HD Radeon 7850 IceQ Turbo has performed very well and gave me a 7.9 score on graphics and gaming graphics in the Windows Experience Index which i could not even achieve with 2 Turbo 6870 GPUs in CrossFireX mode as i only got a score of 7.8 which is still good, but getting a 7.9 score with this singe GPU was a treat and i am very happy with it and would recommend this graphics card to everybody for everyday use or if you are a hardcore gamer
November 12th, 2012 at 04:26 pm By Niclas Rydell
This graphic card performs great in BF3 in “ultra” (highest graphic setting). I tried ARMA2 and there I had to go for “high” (second highest graphic setting).
The card is very silent and comes with a “one click” overclocking feature which works perfectly. You can monitor the temperature of the card and decide your own overclock setting if you prefer.
If you have a transparent computer case the card looks awesome with the metal heat pipes!
November 6th, 2012 at 02:45 am By Klaus
When i recieved this GPU and when i opened the box it was wow this is a pretty big graphics card and looked really cool and i like the black color to go along with the inside of my pc case which is also black, and it was an easy install to do. I think HIS has made a awesome graphics card and has been well constructed for years of performance and for half the cost of a nvidia graphics card in the same range and will perform as good or even better.
Pros
Every game at through at it like Dishonored, Metal of Honor Warefare, Borderland 2 and Mass effect etc all at max settings and the temperature never exceeded over 50c on all the games and the fan speed never exceeded over 35 - 37% and was very quiet during all the gameplay being done on these games and was a treat to play these games with so little noise from the fan.
The framerates on all these games were around 60 fps except Metal of Honor Warefare which was from 47- 50 fps which is still very good for that game.
Cons
None as this HIS HD Radeon 7850 IceQ Turbo has performed very well and gave me a 7.9 score on graphics and gaming graphics in the Windows Experience Index which i could not even achieve with 2 Turbo 6870 GPUs in CrossFireX mode as i only got a score of 7.8 which is still good, but getting a 7.9 score with this singe GPU was a treat and i am very happy with it and would recommend this graphics to eveybody for everyday use or if you are a hardcore gamer
October 25th, 2012 at 02:51 am By Allen Sitter
Inexpensive upgrade from previous generations.
This card is great. I purchased an HIS HD6950 nearly two years ago and it was a great card. At the time it was nearly as good as nVidia's competing products, but half the price. The biggest problem I had was the 1GB VRam limitation. For Skyrim, GTA IV, and Shogun 2, I turned off shadows to fix the performance issue.
As the next generation of games are coming out, I knew it was time to upgrade my card. The IceQ 7850 fit the price point and specs well. Double the VRAM and a great all around clock speed bump sounded like a great idea.
Pros:
This card runs so much quieter than my old 6950, I thought something was wrong with my computer when I booted it up after installing the new IceQ 7850, lol.
Overall temperature difference. My old card would creep up to ~60c (~140F) and the fans would be screaming at 100%. This card hits ~40c (105F) after long hours of fighting dragons in Skyrim (with 30+ mods to make it look so much better) or mowing down the enemies of the shogunate in Shogun 2 Total War.
Shadows! I can actually keep shadows on in games now. I've set every setting in every game to max and I haven't noticed any slowdowns as of yet.
The packaging was superb. I generally don't comment on the condition of the package, I know UPS/USPS/FedEx really abuse boxes, but this box was beat up pretty bad by the delivery company. The card itself is encased in several inches of foam inside the box, so don't worry about rough shipping!
Cons:
None... It's quiet , performs great, and was as easy as possible to install.
Overall - 10/10.
Post your comment
Comments will be reviewed by the editors before being published, mainly to ensure that spam and irrelevant material are not published . Please feel free to comment!
We strongly encourage you to use your real name. E-mail addresses are required in case we need to follow up with you directly. We won't publish your e-mail address unless you request.
HIS has won over 1700 awards with AMD graphic solutions from major media worldwide.
“With a price under the 200€ this graphic card is really interesting. It is a performance product (mid-range product) for AMD but with the quality of this model it can fight the HD7870 or 660Ti from NVIDIA. The silence – due to the IceQ – is a real plus essentially for the temperature of the GPU allowing some good overclocking to increase performances without spending money. So, all actual games can be played with some tweaking on the settings. To conclude, this HIS card offer a good performance/price ratio and we recommend it !”
Zeden.net - "Very Good" Award
"The card has remained quite cool after more than 42 mintes of Heaven 4.0 at the 2560x1440 with all filters applied (58 degrees Celsius). The fan did only raise at about 43%, while preserving low noise levels. We found interesting is when the fan has reached a rotation speed of about 3000RPM, a vibration is induced into the whole assembly making the card a little bit noisier than when it runs with about 3200RPM. We have seen a similar behavior with a Palit card in the past but the card should reach this fan speed only when the surrounded area is not properly cooled. The cooling system is also to be appreciated because it removes the hot air that travels through the fins directly outside the case and does not permit hot air recirculation."
Madshrimps.be - Recommended Value Product
The HD7850 IceQ Turbo (model name: H785QT2G2M) is rated 5 out of 5.
"The HD7850 is also shown very docile as the core frequency is increased to 1180MHz and the memory at 1400MHz. The cooling system is really efficient, which allows this increase in frequency."
"Very impressive and that in another because the system cooling HIS house. It is composed of four pipes, two 6mm and two 8mm, which are in direct contact with the graphics chip..."
One extra PWM phase, good cooling and good overclocking are the reason of this good rating.
OverClex - Rated 5 out of 5

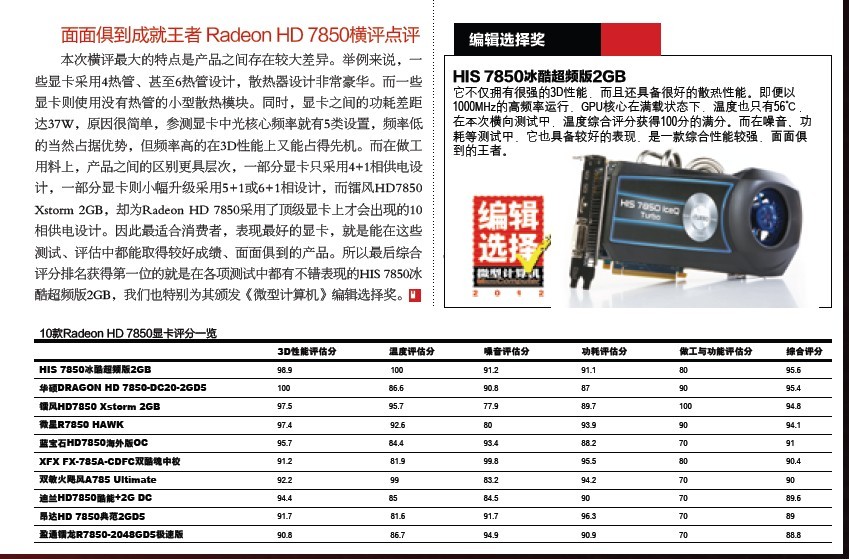

「它不仅拥有很强的3D性能，而且还具备很好的散热性能…而在噪音、功能耗等测试中，它也具备较好的表现，是一款综合性能较强、面面俱到的王者。」 《微型计算机》 - 编辑选择
