Boost Clock is Faster
The card has the latest Boost Clock technology, providing extra performance for the most demanding games and applications!
IceQ X² – Cooler, Quieter
Cooler
With IceQ X², the card is cooler than the reference cooler.
Quieter
IceQ X² is one of the quietest coolers, making the card quieter than the reference cooler. The card is below 28dB when watching movies, surfing Facebook, working. The card remains quiet whether you are gaming, online socializing, entertaining or working.

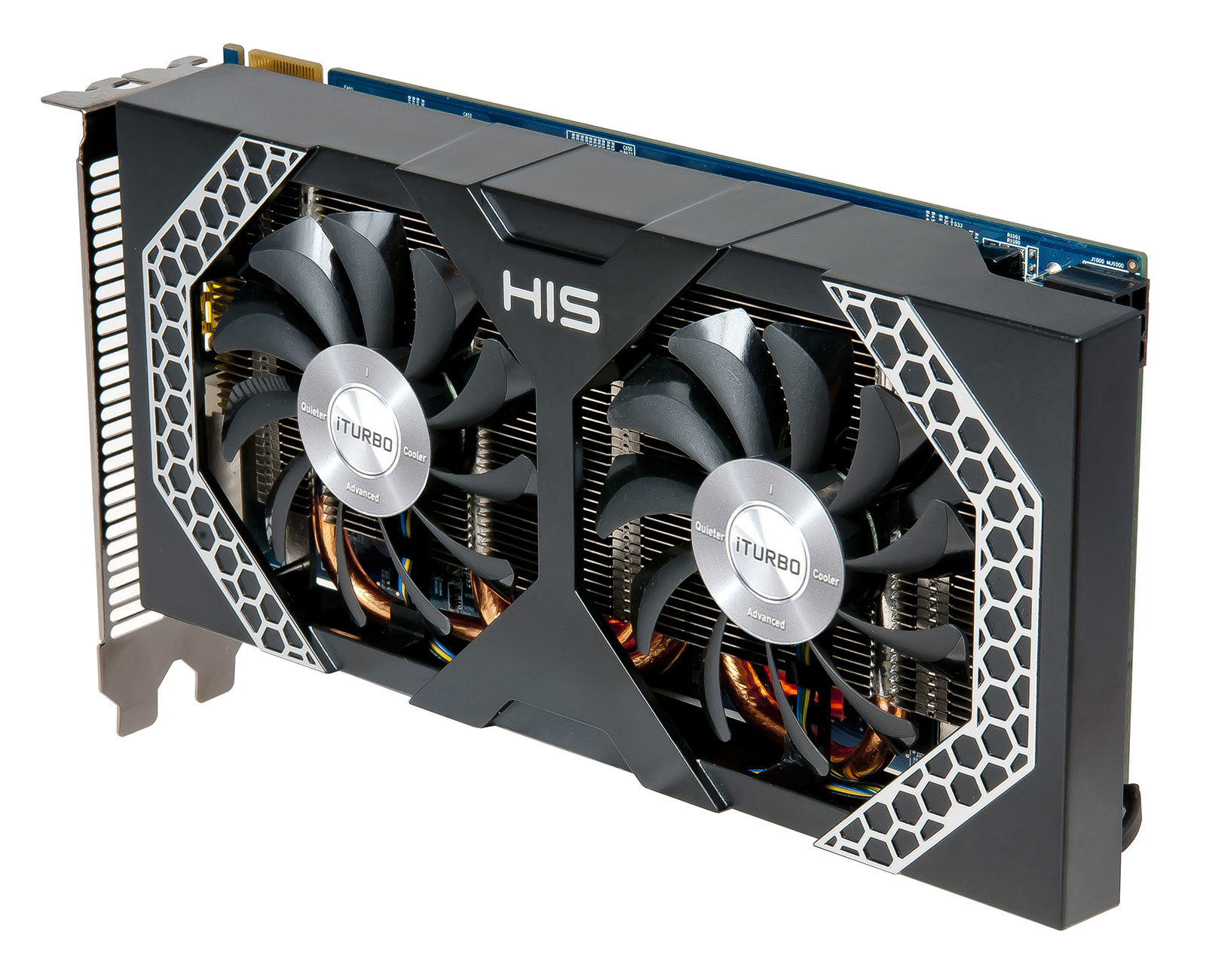

Fan Design
- The super large 2x 80mm dual axial fans draws massive amount of cool air to cool the GPU directly.
- The Q&C fan blade increases air velocity make cooling more efficiently while keeping noise level at minimum.
- The fan is extremely durable with a life span of up to 50,000 hours.
- 3x 6mm wide heatpipes optimize cooling performance by removing heat from the core area.
- The extra large 62x62mm copper heatsink provides a large area to dissipate heat efficiently.
- The card also carries memory and mosfet heat sinks to provide extra heat dissipation from these areas.
- The card also features fan control and monitoring, you are able to read fan speed & Asic temperature from iTurbo or other softwares.
Boost Clock Equipment
The card is equipped with improved power design which is great for OC! HIS cards utilize Dynamic Phase Control PWM IC to save power for better use. Along with improved power design, digital power design, HIS cards make the best out of power, carrying better OC capability and pushing clock speeds to the full potential!
Built for Crossfire
CrossFireX Ready!
The card's is armed with Crossfire Connector, ready for CrossFire & strengthened performance!
New Technology, New Experiences
GCN
With AMD 2nd generation GCN technology, the card optimizes DirectX® 12 gaming performance automatically up to 2.5 times faster! It also offers up to 4.5x compute performance and up to 95% lower GPU Idle Power Consumption!
Apps Faster & Smoother!
The card enables a “quality graphics” experience on everyday applications, giving huge performance boosts on image processing, file compression, media converter apps, and a lot more!
• Adobe Photoshop CS6
• Corel Winzip 16.5
• Musemage
• Handbrake
• MotionDSP Vreveal
• GIMP
• Cyberlink Power Director
• ArcSoft Media Converter
AMD TrueAudio
AMD Eyefinity
Set up Eyefinity on 4 displays with No ACTIVE DisplayPort Adapter is needed.
PCI-e 3.0 Support
Armed with the latest PCI-e 3.0 bus design maximizes performance by delivering double bandwidth per lane of PCI-e 2.x. Paired the card with the latest platforms and get the ultimate performance!
More Graphics, Less Power!
The new architecture of the card gets more usable processing power for your money, enabling better frame rates in the latest games at high resolutions. In addition, with AMD ZeroCore Power & AMD PowerTune technologies, you can optimize the balance between performance and power consumption of your system by adjusting the engine clock during runtime of the card. Manage the power and keep your wallet loaded!
See More, Enjoy More!
The card supports 30” LCD monitor and any large size TV up to 80" feature with 16:9 ratio in amazing 4096 by 2160 resolution. Up-scaling your computer into a multimedia center with the biggest display!
Enjoy HD Beauty
With Full HD 1080p support, the card delivers high quality 1920X1080 graphics, enabling seamless full-screen video playback. See HD, hear HD and feel HD - Enjoy the beautiful graphics now with the card!
Enjoy Copy Protected Movies
The card is HDCP complaint, enabling users to play copy-protected content, such as commercial DVD movies.
Enjoy True to Life Graphics
ULTRA HD videos have resolution four times that of current HD videos, meaning images too clear that may deceive your eyes! With the card, you are set for getting the movie theater experience to your home. You may be able to watch a video shooting the Eiffel tower and zoom it in to see your friend’s face clearly from the top! Get your eyes impressed and enjoy mind-blowing graphics with extreme clarity, depth and texture!
See More, Win More!
The card is capable to turn your computer into a super gaming machine. Enjoy the latest 3D games with stunning graphics and effects that your enemies cannot match! Get an immersive experience with AMD Eyefinity!
Expand your game across up to 3 displays while your opponents have one monitor. Along with all-new support for stereo 3D, universal bezel compensation and brand new display configurations, take the unfair advantage over your opponent and win more with the surround sight
View More, Work Better
Having one dedicated screen just for twitter or Facebook and a second for outlook is not a dream anymore. The card features a DisplayPort for enhanced workspace flexibility. You can easily connect to the 27” Apple LED Cinema Displays with the DisplayPort. The dual-link DVI port allows you connect to a 30” DVI display up to 2560x1600. Resolution can even reach 4096x2160 with HDMI® , good for TV up to 80"!
Hear Better in Video Conference
Most GPUs today support only one audio stream at a time. The card, however, has Discrete Digital Multi-Point Audio that can simultaneously output multiple, independent audio streams. Audio seamlessly follows the video, providing affordable multi-display, multi-audio conferencing for consumers!
HIS PRODUCTS ADVANTAGE
- HIS delivers Faster, Cooler, Quieter plus the best quality product!
- Professional customer service and technical support

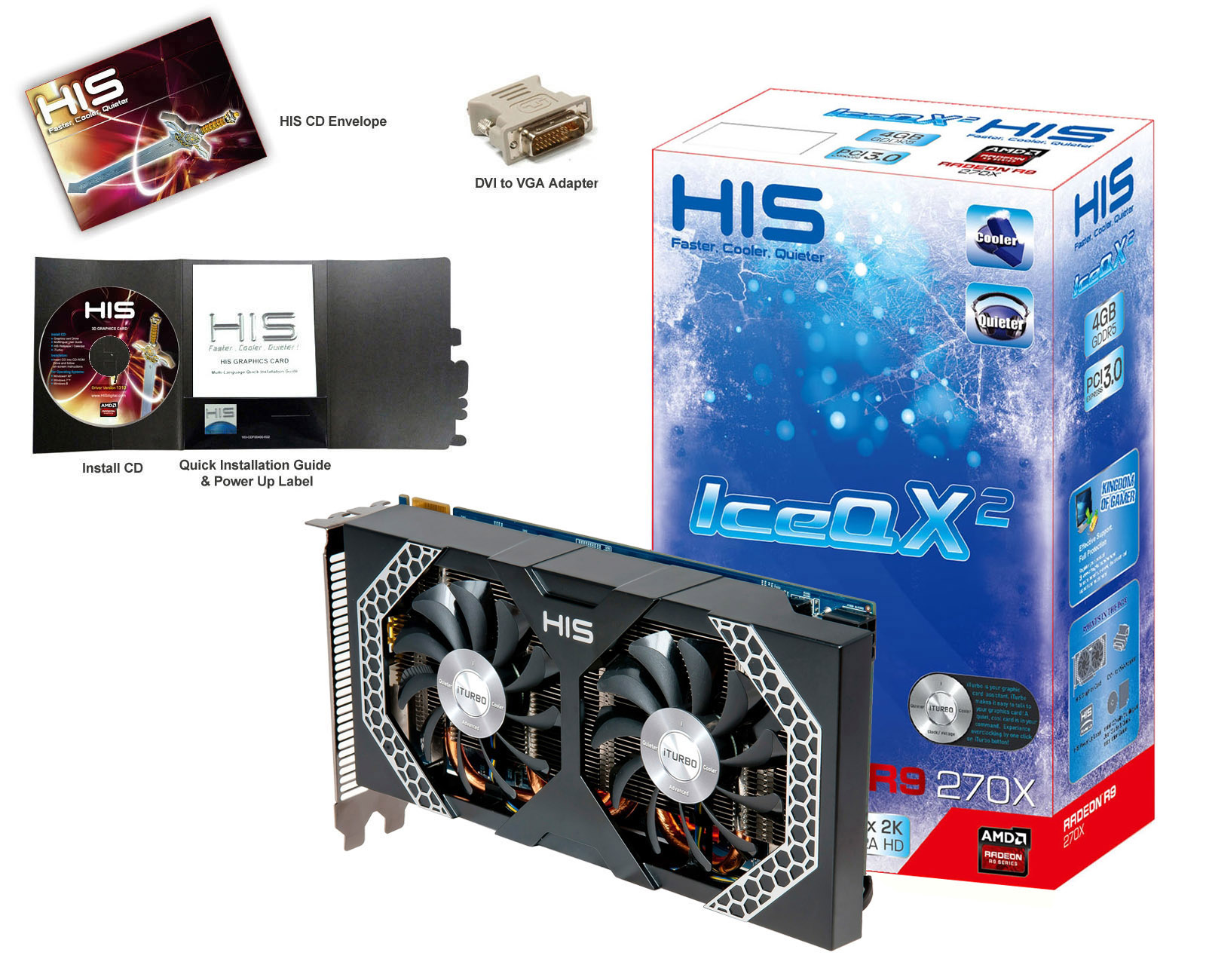

What's in the box
- HIS Graphics Card
- DVI-I to VGA Adapter
- Install CD with Multilingual User Guide
- Quick Installation Guide
- HIS Power Up Label
 Model Name |
HIS R9 270X Mini IceQ X² Boost Clock 4GB GDDR5 PCI-E DLDVI-I+SLDVI-D/HDMI/2xMini DP |
| Chipset |
AMD Radeon R9 270X |
| Memory Size |
2048 MB |
| Memory Type |
GDDR5 |
| Core Clock |
Up to 1000 MHz (Boost Clock Up to 1050 MHz) |
| Memory Clock |
Up to 5.6 Gbps |
| Memory Interface |
256 bit |
| Power Supply Requirement |
500W (or greater) power supply with two 75W 6-pin PCI Express power connector recommended600W power supply (or greater) with four 75W 6-pin PCI Express power connectors recommended for AMD CrossFire™ technology. |
| Max. Resolution (per Display) |
DisplayPort 1.2 - 4096x2160HDMI - 4096x2160Dual-link DVI with HDCP - 2560x1600 |
| Interface |
PCI Express 3.0 x16 |
| Outputs |
DLDVI-I+SLDVI-D + HDMI + 2xMini DP |
System Requirements
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard
- 500W (or greater) power supply with two 75W 6-pin PCI Express power connector recommended
600W power supply (or greater) with four 75W 6-pin PCI Express power connectors recommended for AMD CrossFire™ technology. - NOTE: Minimum recommended system power supply wattage is based on the specific graphics card and the typical power requirements of other system components. Your system may require more or less power. OEM and other pre-assembled PCs may have different power requirements.
- Certified power supplies are recommended. Refer to http://ati.amd.com/certifiedPSU for a list of Certified products
- Minimum 4GB of system memory
8GB (or more) of system memory recommended for AMD CrossFire™ technology - Installation software requires CD-ROM drive, a keyboard, a mouse, and a display
- DVD playback requires DVD drive and a DVD
- Blu-ray™ playback requires Blu-ray drive and a Blu-ray disc
- For an AMD CrossFire™ system, a second AMD Radeon™ R9 270X GPU, an AMD CrossFire™ Ready motherboard and one AMD
- CrossFire™ Bridge Interconnect cable is required
- Use of 3 or more displays with AMD Eyefinity technology requires a DisplayPort-capable panel or an AMD Eyefinity validated dongle. See http://www.amd.com/EyefinityDongles for a list of validated DisplayPort dongles.
- 64-bit operating system highly recommended
